8BitM8 - A Hardware Bit Crusher

US Stompbox-style unit offers settings for 4, 6 and 8-Bit with triggering via an arcade button      11/06/20

midierror says that their 8BitM8 is a brand new bit-crusher pedal inspired by the tonal qualities of vintage samplers, MPCs and the love of lo-fi sounds. They tell us that it comes hand made in a rugged metal enclosure packed with high quality components which include a genuine arcade button. Here's the full details direct from midierror...

Hardware bit crushers are hard to come by and are often simply 'sample rate reducers' without any effect on the number of bits. The 8BitM8 is a fully digital bit crusher with settings for 4, 6 and 8-Bit - meaning the sounds of early samplers, lofi keyboards and digital effect units at your fingertips.

The 8BitM8 processes sounds using an 8-Bit AVR Microcontroller, sampling the input signal from the pre-amplifier at high speed, going to the DAC at an adjustable interval set by the RATE knob. Prepare for a heady audio spectrum spanning subtle glitchy overtones to supercharged distortion, with a WET/DRY MIX knob to set how much of the signal is processed.

A simple LOW PASS FILTER is available for the wet signal to swoop from sparkly brightness to low end warbles. The LEDs reflect the outputted audio rate, and provide a snazzy representation of the processed audio, be it smooth and musical or edgy and raw!

The pedal has true bypass, controlled and engaged by a relay which is triggered by the arcade button; a genuine arcade cabinet component built to withstand extreme button bashing. It functions as a momentary switch or as toggle by simply pushing the button during power on or not. This gives you the chance to create quick staccato chops or engage the crusher for a more sustained period.

Bit crushing is a superb effect to use in conjunction with other effects and works supremely well on keys, vocals and bass sounds. If you're a fan of the EMU SP1200, Akai S3000, Akai S950 or even the Casio SK-1, this pedal will process your sound with authentic degraded digital goodness.

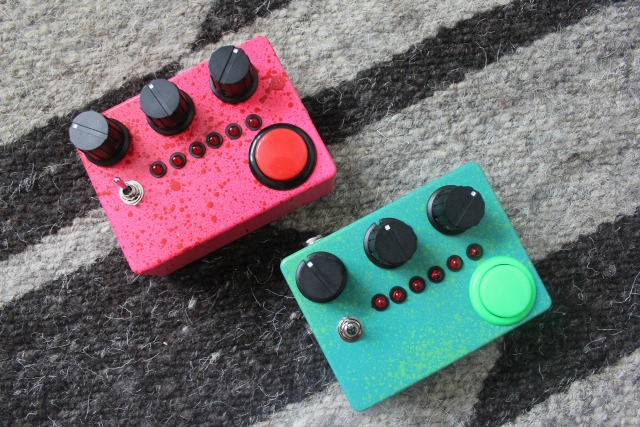

The 8BitM8 comes in a heard-wearing metal enclosure spray painted and varnished to order. Choose from a single colour or two tone model, with a myriad of arcade button colours to choose from.

Choice of paints are Red, Turquoise, Yellow, Magenta, Green, Black, White, Pink and Gold. Buttons come with a choice of Yellow, Green, Blue, Red, White, Black, White, Grey, Pink, Black & Red, Black & Yellow, Black & Green and Black & White.

The pedal is powered by a 2.1mm barrel connection, and requires a 9V 100mA power supply with a negative centre (not included). If you require a power supply, please get in touch before purchase.

The 8BitM8 was designed by the super talented Harry Axten of HKA Design.

Each one comes fully constructed, tested and is shipped from the south coast of England. Please allow a couple of days for painting and varnishing before shipping.

Pricing and Availability:
$185.00 (£144.98 GBP)

More information:
