Digitally-Controlled Eurorack FET Mic Preamp

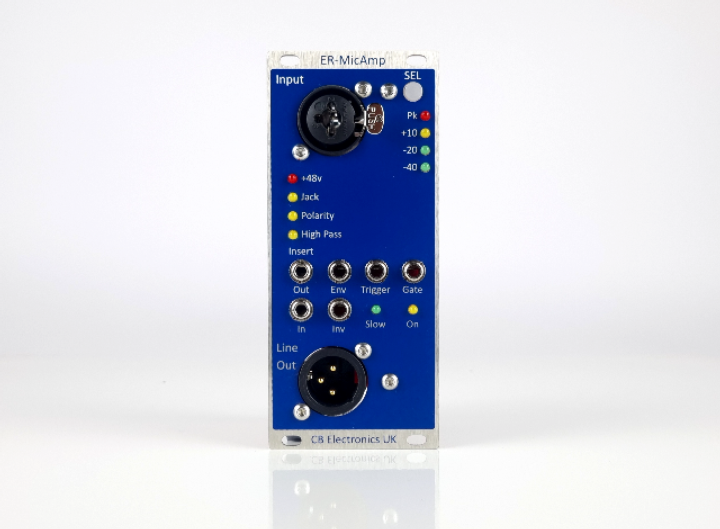

CB Electronics has announced the ER-MicAmp for Eurorack. The ER-MicAmp is the latest addition to the ER-Range, and joins in with the ER-Processor, ER-Patch16/32 and ER-Gain & Sum.

A spokesperson told us, "Our goal was to create the best possible clean eurorack FET Microphone preamp, with digital control and recall from the XPatch App and the ER Processor. The ER-MicAmp brings studio quality to eurorack with clean sparkly treble response and an extended sounding presentation of the low end."

Here's more details direct from the company...

The ER-MicAmp excels in delivering detail and lets people hear very low level signals in the top end of the spectrum. It features an unrivalled pristine High Impedance line/Instrument level input, to bring in very high quality audio from any source into the system.

Use the breakpoint to connect Mic/Line/Instrument Input to your system and to output via Balanced XLR Line Output.

An I/O Swiss army knife with Envelope follower, Gate and Trigger outputs.

 Features

• High Quality FET Input Mic Amp
• 48v Phantom Power
• XLR Combo Input with balanced Hi-Z (10M) Jack Input
• 3.5mm Jack Break Point
• Balanced XLR Line Output from 3.5mm Breakpoint Return
• High Pass (150Hz 6dB.Octave) and Polarity Control
• Envelope & Inverse Envelope Outputs -5v to +5v, With/Without Low Pass filter
• Trigger & Gate Outputs
• Controlled by the ER processor - Digital Recall of all settings
• Select between fixed gain of 16dB, 32dB, 48dB or 64dB at the Insert Output, 22dB, 38dB, 54dB or 70dB at the XLR Output
• Combine with one channel of the ER-Gain+Sum to provide up to 92 dB of variable gain at the XLR Output with 0.25 / 0.5 / 1 dB gain Steps.
• Size: 11HP
• Control via the XPatch App


Pricing and Availability:
The ER-MicAmp is available now priced £300 with an early adopter 10% discount price of £270. Offer ends: 1st July 2025
