Klavis Releases Two Bits Module

US Dual logic processor with chaining and CV functions 17/10/22

Seen earlier this year at Superbooth, the Two Bits module from Klavis is now available. This is what they have to say about it...

Why another logic module in the Klavis range?
The long time available Logic XT was thought as a complementary module for logic lovers who had already the basic features covered with modules they own. The new Two Bits is dedicated to a wider audience. To start, it offers two sections which gives more flexibility for the buck and space. Beyond that, these sections can be chained to achieve functions with more than two inputs, an finally it offers functions with real time CV control.

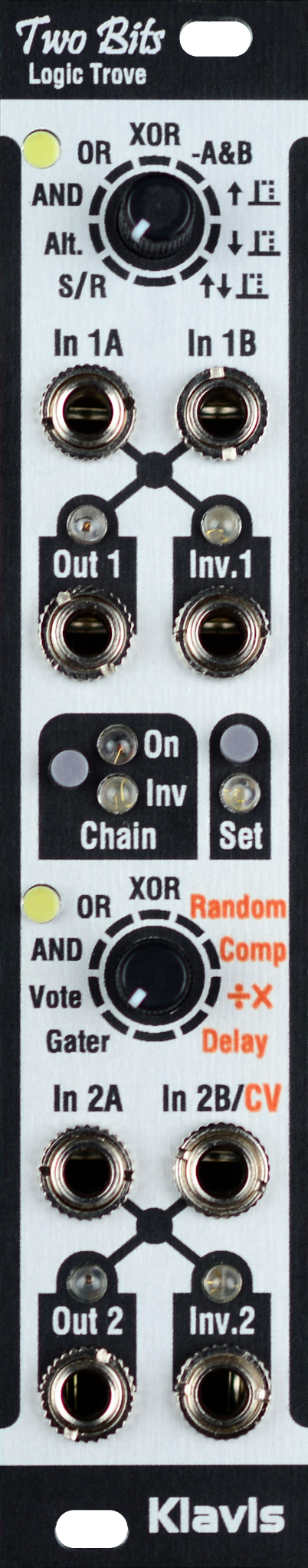

Klavis - Two Bits
Two dual-input sections can be used independently, put in parallel for 4-input wide logic, or chained for more advanced processing.
Each section presents normal and inverted outputs.
The two sections offer a set of common and specific functions for a total 15 different ones.
Several functions offer real-time CV control for dynamic changes of the conditions.
All time-related functions can be independently user-adjusted and are saved automatically.
LEDs tell permanently the actual status of all outputs.

Features

Two dual-input logic processors

15 different functions

Simultaneously available normal and inverted outputs

LEDs on all outputs

Chaining can be activated and inverted by a dedicated button with LEDs

Chaining does not waste any input or output; an additional virtual input is created in the second section

Functions with duration, voltage, percentage, and ratio are user editable.

User settings are stored automatically

Random pass, voltage comparator, clock mult/div and delay line functions allow CV control

White LEDs next to the pots confirm the matching of knob position and function

The outputs can be Ored by simple shorting in a multiple

Firmware upgradeable by playing an audio file

Low consumption, skiff-friendly & compact module

Complements Klavis' Logica XT with a varied feature set

Two Bits - Specifications

5hp width

21mm/0.83' behind panel

31mA +12V

1mA -12V

0mA 5V
