Custom Isomorphic MIDI Keyboard

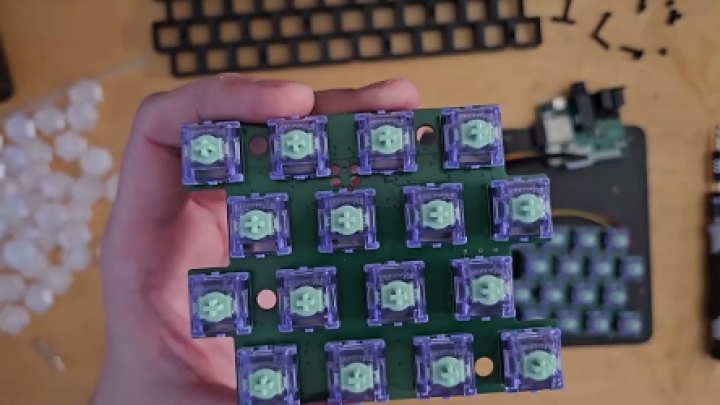

Xavier Dumont has recently shared his excellent Custom Isomorphic Keyboard - t's a 48-key device running on an ESP32, with potential for Bluetooth and Wifi functionality. It really looks and sounds the part! In the video he goes through a technical breakdown, dismantling the unit to reveal the keys and caps, the key switch PCB and the brain PCB. Here's a demo:

Great stuff, here are the time stamps:

0:00 Intro and features

1:23 Removing screws and opening

3:26 A word about keys and caps

4:23 Under the keycaps

5:14 Keyswitch PCB

12:19 Brain PCB

14:44 Breakout PCB
