The Father of Portable Music

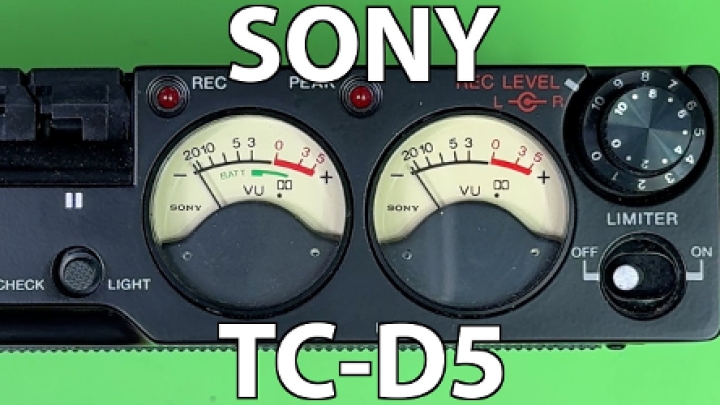

Prior to the release of the Walkman Sony released the specced-out TC-D5 Field Recorder, as featured in this video from DankPods. We also found a video on it by Techmoan below - who was kind enough to list some alternatives, which include the JVC-KD2 JVC KD-1635 JVC KD-1636 Marantz/Superscope CD 330 Nakamichi 550 Teac PC-10 Technics RS-686 DS Philips D-6920 Sony TC-D5 Uher CR-240. Here's some info from aptly named Walkman Central:

The TC-D5 was the machine that while clearly not being a "personal stereo cassette player" in the accepted sense of the term contributed immensely to the development of the Walkman idea and the Walkman range. Launched in 1978, it immediately became a favourite of senior people in the Sony company as a source of high quality portable music, despite the lack of suitable lightweight headphones, its large size and its high price. This provided the idea for a cheaper, smaller version that could be sold cheaply enough to become widely popular.

The TC-D5 was not the first Sony portable stereo cassette recorder, there had been many models aimed at both the amateur and the professional user, though they had all been fairly large and heavy, similar in both size and scale to the domestic cassette decks of the period. They were typically based around the mechanicals of the larger machines and had included mains power units and full-sized loudspeakers, all factors not conducive to small size and low weight.

The TC-D5 was different to these models and the design was clearly focused on portability. It operated on batteries only, had only a small "monitor" loudspeaker and most importantly, used a mechanism specially developed for small machines. However, the TC-D5 was first and foremost a high quality product, and none of these factors were allowed to detract from this. The signal processing circuits required a higher voltage than the two "D" sized batteries allowed, so a DC-DC converter was employed to step up the 3V to 12V, enough to power high-grade amplifiers and the excellent limiter and Dolby B processor that the machine included. Of particular note, and most important, were the microphone amplifiers, which offered low noise and a wide dynamic range, making the TC-D5 the perfect choice for outdoor recording, news gathering and other such tasks. Also of interest was the head which was made of ferrite. This material not only has excellent electrical properties, it is also very hard and resistant to wear, reducing the need for frequent readjustment.

The best electronics in the world would have been wasted if the mechanical sections of the machine had not been of equal quality. A big problem with any portable machine is that of wow and flutter, random tape speed changes that slur the sound and lend it a diffuse, wavering quality. Large, stationary recorders can be fitted with large flywheels and powerful motors to minimise these effects, but in portables this is not only impractical due to the size and power constraints, it also is counter productive as large rotating masses become unstable when the machine is moved or carried.

Here's Techmoans video...
