WNAMM12: New Large Diaphragm Condenser

US Lauten Audio announces the FC-387 Atlantis microphone      27/01/12

WNAMM12: New Large Diaphragm Condenser


Buying Choices
Affilliate Links help support the site

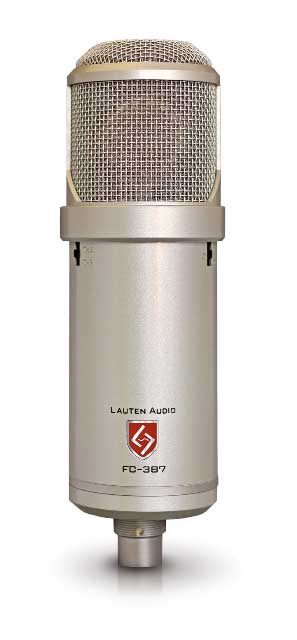

Lauten Audio has announced a new microphone, the FC-387 Atlantis model, a solid-state multi-functional, large-diaphragm condenser. The uniquely appointed Atlantis microphone features multiple switches for three different polar patterns, gain, and unique timbre settings. Lauten Audio tells us that the FC-387 is for recordists seeking an incredibly diverse and useful modern FET studio microphone. They say that it offers a blend of full and rich low and mid-range, as well as smooth and unique high-mid and high-frequencies. Brian Loudenslager, Founder of Lauten Audio told Sonic State, "The idea of the FC-387 'Atlantis' microphone was conceived over several years during conversations with engineer Fabrice DuPont of Flux Studios and Puremix.net. Fab had acquired several Lauten microphones over the years and I would pick his brain at industry tradeshows about the mics. I always try and speak to owners of our products to learn where they're using a mic most, where they feel it's shining and where it's not working for them. What I am most impressed about Fab is that he is always brutally honest and never sugar-coats his opinions. It was during conversations with him that I made a challenge to myself; I wanted to design a microphone that Fab would love, one that would be part of his first choices at the beginning of a session! Over the past year I've had the opportunity to work with Fab and create that mic. It's been challenging with a very rewarding end result."
Here's more details directly from Lauten Audio Multiple switches located on each side and back of the FC-387 Atlantis microphone allow the engineer to uniquely configure it. First is a polar pattern switch giving recordists the option of choosing between Cardioid, Omnidirectional or Figure-8 polar patterns. Borrowing the much-loved gain options from its sibling the Lauten Audio 'Clarion' FC-357 microphone, the Atlantis features a -10db and +10dB switch. The +10dB gain switch increases versatility by allowing a choice of whether to have more character from the preamplifier gain or directly from the microphone. While the -10dB switch reduces its output and increases the maximum SPL level allowing it to record very loud sources.
What makes the Atlantis microphone truly unique is its voicing switch. This feature gives recordists three very different timbres to choose from that satisfy an extremely wide range of recorded sources. The options are: Gentle, Neutral and Forward. The 'Gentle' position provides maximum control of bright or peaky sources like S's in vocal recordings. The 'Neutral' position offers a nice even response with good control over vocal S's and other audio peaks, while the 'Forward' position can help bring life to dull sources without having to use EQ, but while still maintaining control over any peaks.
As are all Lauten Audio microphones, the FC-387 Atlantis is built with extreme attention to detail. From the individually hand-tuned capsule and premium high-resolution electronics, the microphone is a high-quality precision instrument that will meet or exceed the demands of any studio recording environment.
Technical Specifications for Atlantis FC-387:
  • Type: 31.25mm dual large diaphragm pressure gradient transducer microphone
  • Polar Patterns: Omnidirectional, Cardioid and Figure-8 selectable
  • Circuit: Low-noise solid-state FET
  • Frequency Range: 20Hz - 20Khz
  • Dynamic Range: 120dB minimum
  • Impedance: < 200 ohms
  • Max. SPL: 0.5%THD@1000Hz: 130dB
  • Self-noise Level: < 12dB(A)
  • Sensitivity: 16mV/Pa OR -36±2dB 0dB=1V/Pa 1000Hz
  • Special Features:
    • 3-way -10 dB attenuation, 0dB and +10dB gain switch
    • 3-way Gentle, Neutral, Forward voicing switch
    • 3-way Polar pattern switch
    • Connector: 3-Pin standard XLR
    • Power Requirement: +48V phantom power
Pricing and Availability:
The Atlantis FC-387 microphone retails for $1599. US and will be available in Q2 of 2012. More information:
