Impressive DIY Poly Synth In Progress

US Wave folder demo recently released      17/10/21

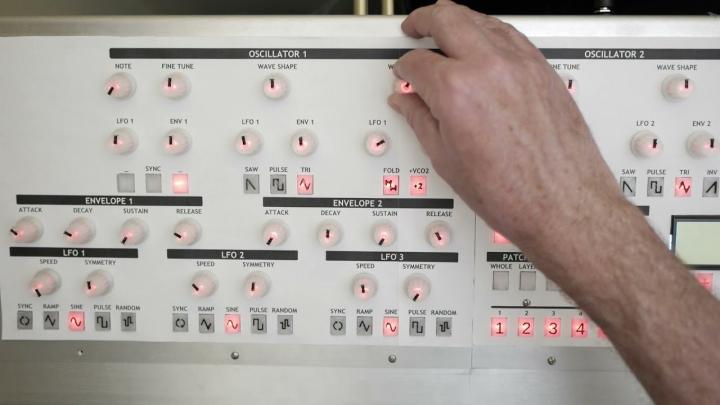

It's a special time to be around with so many synths and effects being programmed, designed and made by individuals - with some astonishingly sophisticated results. This DIY Poly Synth is a great example, made by the mysteriously named Chris Synths - featuring 8-voices, with two VCOs, a ladder-style lowpass and a state-variable highpass filter, wave folder, and ring modulation.

Here's a bit more detail taken from the video info:

All voice circuitry was made with op-amps, OTAs, and discrete components. There is one effect, an 8-stage analog phaser. There are two ST microcontrollers for MIDI, voice control, display driving, front panel scanning, etc. Control voltages are produced by 23 DACs, 21 DAC7554 and 2 AD5676. Circuit design and PCB layout was done in Eagle. PCBs made by JLC. Sheet metal designed in and ordered from emachineshop. Software written in C using STM32CubeIDE. Knobs and buttons are 3D-printed.

The wave folder is shown in his latest video:


There's also a video of his previous synth:



Very impressive stuff, I like the look of that X-Y controller! We look forward to seeing more.



About the author [midierror]: midierror makes nifty Max For Live devices, innovative music hardware, award winning sample packs and hosts a podcast speaking to people in the music world.
