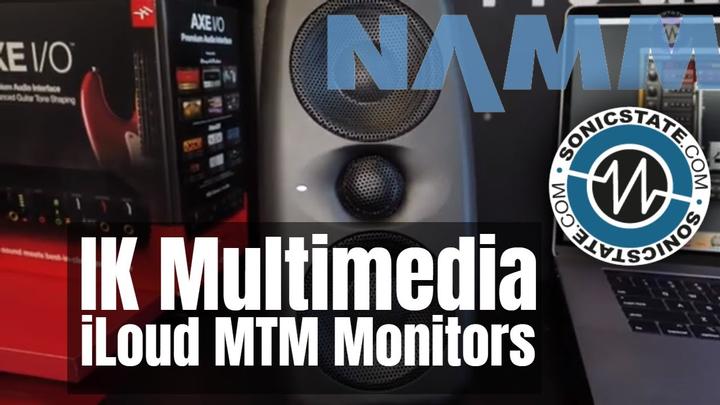

NAMM 2019: IK Multimedia iLoud MTM Monitors

Desktop size, with a big sound      31/01/19

Buying Choices

The original iLoud Micro Monitors certainly punched above their weight, sounding pretty impressive given their size. The new iLoud MTM Reference Monitors continue the compact desktop format, but are three driver design with two mids and a tweeter, they deliver 40Hz to 24kHz with an extremely flat linear phase response. It has built in ARC (Auto Room Correction) and comes with a calibration mic to ensure the optimum setup for the room.

Features:

  • Type: 2-Way/3-speakers bi-amped, digitally controlled studio monitor
  • LF Drivers: 2 x 3.5” polypropylene custom made mid-woofers
  • HF Driver: 1” low distortion, back chambered silk dome tweeter
  • Acoustic Design: DSP tuned bass reflex
  • Number of amps per speaker: 2
  • Amplifiers type: High efficiency Class-D
  • Total power: 100W RMS
  • LF power: 70W RMS
  • HF power: 30W RMS
  • Crossover Type: Linear Phase Variable Order
  • Crossover Frequency: 3.1kHz
  • Frequency response: from 50 Hz to 24 kHz +/- 2dB (40 Hz -6dB when uncal, -3 dB when cal)
  • Phase response: System remains coherent within +/- 15° from 200Hz to 20kHz
  • Sensitivity at +4dBu: 0dBu signal generates a 100 dB SPL @ 1 m
  • Sensitivity at -10dBV: -11dBu signal generates a 100 dB SPL @ 1 m
  • Maximum SPL @ 1m, one speaker playing, on axis: 103dB from 200Hz up sine wave, 95dB at 100Hz sine, 93dB pink noise
  • Placement setup: Manual switches for LF Extension, LF trim, HF trim, Desk position
  • LF extension: switch Sets -3dB point of the frequency response at 40, 50 or 60 Hz
  • LF switch: Low shelf, +2dB or -3dB from 100Hz down
  • HF switch: high shelf, +2dB or -2dB from 8kHz up
  • Desk switch: -4dB at 160Hz and +1dB at 1.8kHz
  • Calibration: Fully automatic and built-in digital calibration, microphone included
  • Measurement Microphone: Omnidirectional, Mems based precision measurement microphone
  • Full DSP control
  • Connectors: 1x combo XLR-1/4” TRS balanced input; 1/8” TS ARC microphone input, 1 x USB type-B (service use only), AC POWER socket
  • Power requirement: 90 to 240 V AC, auto-ranging, 50 or 60Hz, 120W max power consumption

Available in Q2 of 2019 priced at $379 each.
